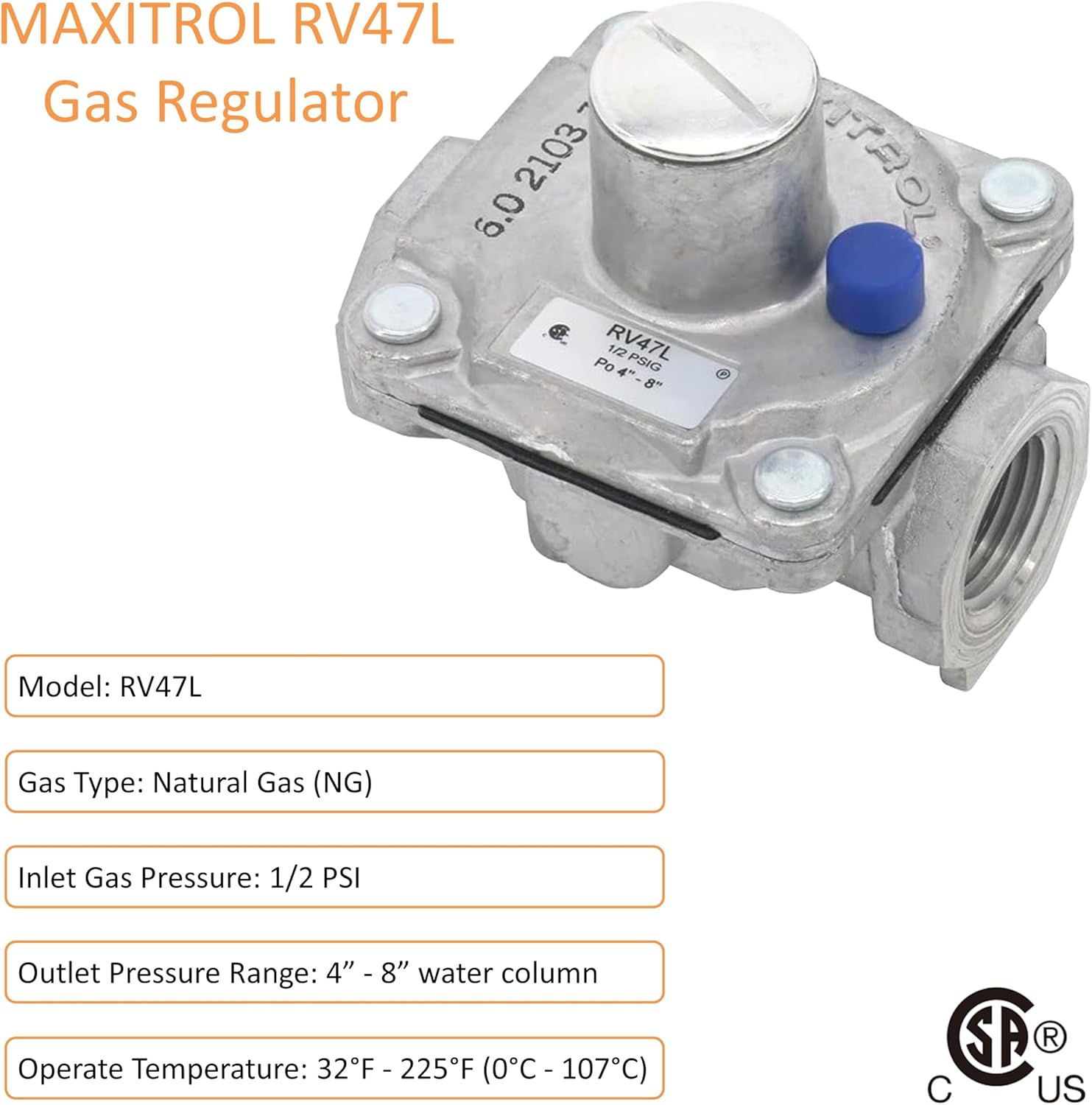

Maxitrol RV47L Natural Gas Pressure Regulator, 1/2" FPT Thread, 13/16" In and Out Opening, 1/2 PSIG In, 4" - 8" WC Out, for Awoco Gas Ranges
Product details
| Management number | 224879672 | Release Date | 2026/05/09 | List Price | $16.00 | Model Number | 224879672 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- GAS TYPE & PRESSURE - Gas Type: Natural Gas (NG). Inlet gas pressure: 1/2 PSI. Outlet pressure range: 4" - 8" Water Column
- PIPE THREAD SIZE - 1/2" Inlet & 1/2" Outlet FPT GAS PIPE. Make sure you measure the gas pipe or regulator opening as 13/16 inch.
- CAUTION - This regulator has 13/16" openings for 1/2" gas pipes. The 1/2" gas pipe means interior diameter 1/2" but outside diameter is 13/16".
- MARKING - Model: RV47L, Marking: 1/2 PSIG, Po 4" - 8". Inlet pressure 1/2 PSI. Adjustable outlet pressure 4" - 8" Water Column.
- OPERATE TEMPERATURE - 32°F - 225°F (0°C - 107°C). Do not install the regulator too close to the heating equipment or use it in a very cold environment. Heat or cold can change the resistance of the spring inside the regulator. Overall Dimension: 2-7/8” W x 2-1/4” D x 2-1/2” H. This is a small size regulator. Refer to pictures for detailed dimensions.
| UPC | 792277524845 |
|---|---|
| ASIN | B0923G3XR9 |
| Size | RV47L 1/2" NG |
| Set Name | Single |
| Brand Name | Awoco |
| Unit Count | 1 Count |
| Valve Type | Globe Valve |
| Thread Size | 1/2" |
| Thread Type | Female Pipe Thread (FPT) |
| Manufacturer | Awoco |
| Model Number | RV47L |
| Material Type | Bronze |
| Exterior Finish | Bronze |
| Item Dimensions | 2.9 x 2.3 x 2.5 inches |
| Number of Ports | 2 |
| Maximum Pressure | 8 Inches of Mercury |
| Number of Pieces | 1 |
| Specification Met | ansi |
| Inlet Connection Size | 0.5 Inches |
| Inlet Connection Type | National Pipe Tapered |
| Outlet Connection Size | 0.5 Inches |
| Outlet Connection Type | Female Pipe Thread (FPT) |
| Manufacturer Part Number | RV47L |
